Red Line EZ100 Powder Coating Cup Gun 100kv!

$589.00
$589.00
Brand New RedLine EZ100 Powder Coating Gun. This gun is extremely easy to use and makes for lightning fast color changes! Additional Powder Cups are available for even quicker changes & storage.

Features:
  • Truly portable unit - No control box or extra wires!
  • Full adjustable 20-100 KV directly on the back of the gun
  • ForceFeed technology for the perfect volume
  • Light weight and perfectly balanced gun for optimum comfort
  • Long powder cord & grounding clip allow for maximum mobility

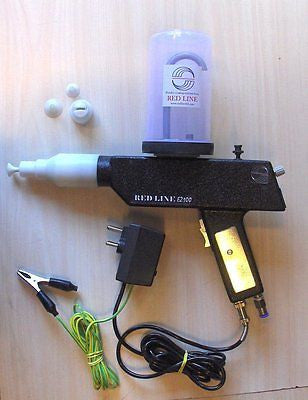

What's in the box:
  1. Red Line EZ100 Powder Coating Gun
  2. (1) Powder Cup - Additional Powder Cups are available for even quicker changes & storage.
  3. Wall Mount Adapter (input 100-270V AC 50-60 Hz. Output 12VDC 1 amp Rating)
  4. 10' ground cable with connecting clip
  5. (3) Additional powder flow deflectors (12MM, 19MM & 25MM)
  6. Start Up Guide & User Manual

Portable: No control panel, no hopper and no messy cables, wires or tubes – truly portable charging



Voltage: Electrostatic charging voltage up to 100 kV directly at the gun tip. The charging voltage can be varied from 20 - 100 kV from the kV controller on the gun itself. The entire control electronics along with the high voltage generator is miniaturized and fitted inside the gun itself.



Powder Flow: The ForceFeed Technology ensures that the powder flow is smooth and puff free and can be controlled from a whisper to a thick cloud with the flow controller on the powder gun itself. Powder flow is similar to that experienced only in higher-end industrial machines.



Power supply: The RED LINE EZ100 powder gun is powered by a special Heavy Duty but compact direct wall-socket mounting 12 VDC power adapter which accepts 100-240V AC. Supplied with a 3 Meter (10 ft) power cable and ground cable with a large clip.

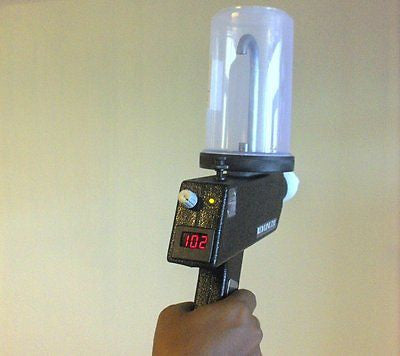

Indicators: The RED LINE EZ100 comes with a specially designed bright and large Digital kV Meter on the rear of the gun. The LED next to the HV controller indicates when the gun is charging. Powder cup: This 750ml cup takes about 1 pound of powder and fits on top. This light-weight and user-friendly powder gun makes for ease in coating for longer periods of time.



Accessories: A set of different sized powder deflectors to create different sized powder clouds and the flat spray pattern (fan pattern) generator nozzle – popular with many professional and industrial powder


Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Cesar Garza
Redline EZ100

I powder coated 4 layers of powder and no problems. Very little over spray and very easy to change colors. The electrical plug is British but the kit comes with an adapter. The air fitting tread to the gun is also British. The kit comes with an air fitting so you can use it. You may have to be creative. I ordered an adapter that converts over.
1/8 BSP Male to 1/4 NPT Male Adapter.
Be careful when tightening the air adapter to the gun treading, The plastic handle housing around the air fitting is weak.
If I could afford to I would buy 2 of the Redline ez100, one for powder with sparkling flake and one for the solid color powder.

c
chad b.
So far so good.

I started out using one of those cheap harbor freight jobs and don't get me wrong it works great and does ok, but after using this my finish is so much better. My only real complaint is the ez100 is a little big and clunky . Other than that so far so good.
